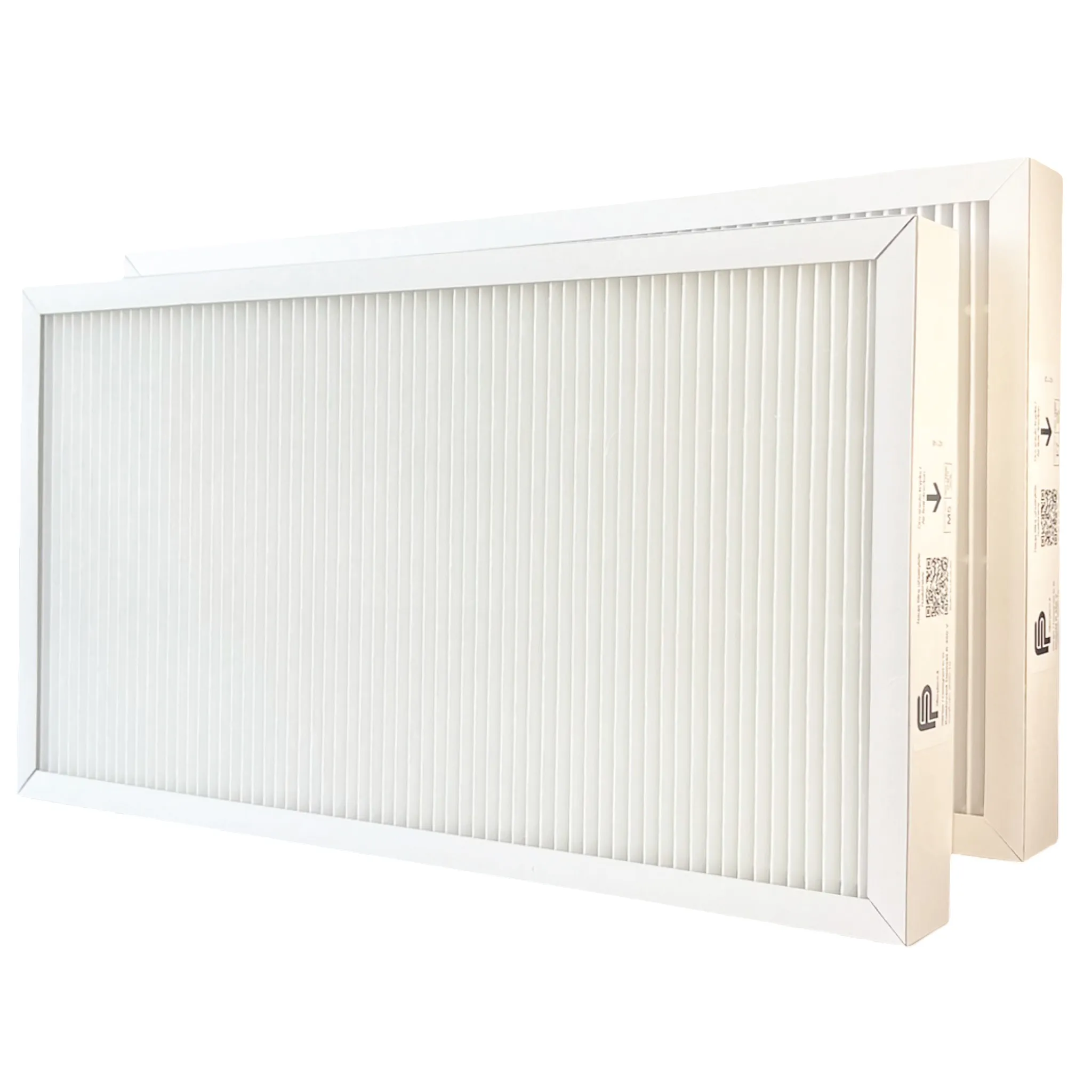

Komfovent Domekt R 450 V (after 10-2020) air filter set
Suitable for heat recovery units:
- Komfovent Domekt R 450 V (produced after 10-2020)
| Part number (equivalent to) | Dimensions, mm | EN 779:2012 | ISO 16890 |
|---|---|---|---|
| 1037117 | 517x278x46 | M5 | ePM10 55% |
| 1038339 | 517x278x46 | F7 | ePM1 70% |
Important information about replacing air filters:
- Replace heat recovery ventilation device filters whenever unit indicates air filter clogging or at least 2 times a year: before and after the heating season. However, please consider pollution of the environment in which you live and the intensity of use of the ventilation unit.
- Air filter is a disposable product. Do not reuse it after vacuuming or other type of cleaning because You risk to damage the filtering material.
- Switch off the air handling unit before replacing filters, protect it from dust and other unwanted objects.
- When replacing filters, thoroughly clean the filter installation area.
- Clogged filters unbalance your ventilation system, the unit then also consumes more electricity and emits more noise!
| Filter set | Suitable for season |
|---|---|
| Standard | All year round. Ensures daily protection of your home and lower electricity consumption of the air handling unit. Replace the filter set at least every 6 months. |
| Efficient | Spring and summer. Protects against smallest dust and pollen; Winter – if neighbours use solid fuel to heat their homes. Efficient filters provide partial protection against fine smoke particles. Replace the filter set at least every 4 months. |
Air filter design
- Filter frame is made of impregnated, moisture-resistant cardboard.
- Filtering material is a multi-layer synthetic filtration material which meets requirements of ISO 16890 and EN 779:2012 standards.
- The pleats of filtering material are crimped by gluing them together, thus ensuring the least possible resistance to air flow and a large dust trapping area of the filtering material.
- Filtering material is glued to the frame on all four sides, thus ensuring that dust does not enter the room through filter leaks.
You will find information on how to replace filters of heat recovery unit here. More useful information – on ventilation device manufacturer’s website.
